PRODIO - Entertainment System

Entertainment System

The PRODIO Entertainment System integrates DSP-matched speakers to deliver tailored audio solutions for high-end applications such as party KTVs, business KTVs, and commercial bars.

PRODIO speakers excel in delivering extremely high sound pressure levels while ensuring safe and efficient operation. Equipped with the latest DSP chips available on the market, the system offers advanced dynamic energy analysis, robust amplification, and reliable protection. Enhanced dynamic distortion compensation technology enables precise control and flawless performance.

Detail

Amplifier

SPMD

The SPMD series is specifically designed to drive PRODIO speaker systems. As a high-efficiency audio power amplifier with a built-in DSP audio processor, it serves as the core of the PRODIO system, providing comprehensive drive management for PRODIO speakers. With a lightweight 1U design, it weighs only 4 kg. The power module adopts a passive power factor correction scheme and operates within an AC voltage range of 90–264 V, delivering a power drive capacity of 2–4 kW, which supports a peak audio power output of 8–16 kW for the entire unit. The audio amplification section employs a dynamic pulse density modulation mode, achieving an overall conversion efficiency of approximately 80%. The built-in DSP in the SPMD series audio power amplifier can load the latest designed correction parameters for PRODIO speakers.

Detail

Dual 15" Bandpass Subwoofer

PDS-W215

The PDS-W215 is a high-performance dual-driver 6th-order bandpass subwoofer. Its 6th-order bandpass design significantly improves energy conversion efficiency while reducing driver excursion and distortion, making it suitable for low-frequency enhancement in various commercial sound reinforcement applications.

Detail

Dual 18" Bandpass Subwoofer

PDS-W218

The PDS-W218 is a high-performance dual-driver 6th-order bandpass subwoofer. Its 6th-order bandpass design significantly improves energy conversion efficiency while reducing driver excursion and distortion, making it suitable for low-frequency enhancement in various commercial sound reinforcement applications.

Detail

12"Multi-purpose Point Source

PDK-CK12

The PDK-CK12 is a high-performance two-way full-range loudspeaker system designed for KTV room sound reinforcement applications. Its 12-inch woofer is equipped with a 3-inch sandwich-structured double-layer copper voice coil and a GBF voice coil former. The high-frequency driver features a 2-inch annular polyester diaphragm, a double-layer copper-clad aluminum wire voice coil, and a 4-inch magnetic circuit. The horn of the high-frequency driver can be rotated by 90 degrees, allowing for either horizontal or vertical installation based on the on-site requirements.

Detail

12"Multi-purpose Point Source

PDK-CD12

The PDK-CD12 is a high-performance two-way full-range loudspeaker system suitable for various commercial sound reinforcement applications. The 12-inch woofer is equipped with a 2.5-inch sandwich-structured double-layer copper voice coil and a GBF voice coil former. The high-frequency driver features a 2-inch annular polyester diaphragm, a double-layer copper-clad aluminum wire voice coil, and a 4-inch magnetic circuit. The horn of the high-frequency driver can be rotated by 90 degrees to accommodate either horizontal or vertical installation based on on-site requirements.

Detail

15"Multi-purpose Point Source

PDK-CD15

The PDK-CD15 is a high-performance two-way full-range loudspeaker system designed for various commercial sound reinforcement applications. Its 15-inch woofer incorporates a 3-inch sandwich-structured double-layer copper voice coil and a GBF voice coil former. The high-frequency driver is equipped with a 3-inch titanium dome diaphragm, a single-layer aluminum flat wire voice coil, and a 5-inch neodymium magnetic circuit. The horn of the high-frequency driver can be rotated by 90 degrees to support either horizontal or vertical installation based on on-site requirements.

Detail

Constant curvature line array

PLS-M12

The M12 offers a narrow vertical mode of 15° and a flexible horizontal mode,
Consisting of one 12-inch neodymium low-frequency driver and three 1.5-inch high-frequency drivers, and includes two NL4 connectors, the plywood cabinet is crafted from abrasion-resistant poly paint and has a well-positioned handle for easy installation and deployment. Integrated rigging for installation and touring. The cabinet also features fixtures for external rod assemblies for maximum flexibility.

Application: bars, nightclubs, clubs

Detail

12" 3-way compression mid-range loudspeaker

PRS-W312

Multi-function full-range three-way speaker system with high-power 12-inch neodymium woofer + 65-core neodymium midrange + 44-core neodymium tweeter driver, proprietary low-frequency steering technology

Application: bars, nightclubs, clubs

Detail

12" two-way front-phase loudspeaker

PRS-A12MKII

Versatile full-range two-way speaker system with ultra-low distortion 75-core 12-inch neodymium woofer and 65-core neodymium compression driver, and a rotatable 90°x70° horn allows for vertical or horizontal installation under any environmental and architectural constraints.

Application: KTV, clubs, nightclubs, family entertainment, etc

Detail

12" two-way rear-phase loudspeaker

PSP-X2

Versatile full-range two-way speaker system with ultra-low distortion 86-core 12-inch woofer and 44-core neodymium compression driver, rotatable 90°x70° horn allows vertical or horizontal installation under any environmental and architectural constraints

Application: KTV, clubs, nightclubs, family entertainment, etc

Detail

12" two-way rear-phase loudspeaker

DSP-112

Versatile, full-range, two-way speaker system with ultra-low distortion 12-inch woofer and 1.5-inch compression driver, and a rotatable 90°x50° horn allows for vertical or horizontal installation under any environmental and architectural constraints

Application: KTV, family entertainment, nightclubs

Detail

12" two-way front-phase loudspeaker

PRS A12

Versatile full-range two-way speaker system with ultra-low distortion 86-core 12-inch woofer and 44-core neodymium compression driver, rotatable 90°x70° horn allows vertical or horizontal installation under any environmental and architectural constraints

Application: Bars, nightclubs, clubs etc.

Detail

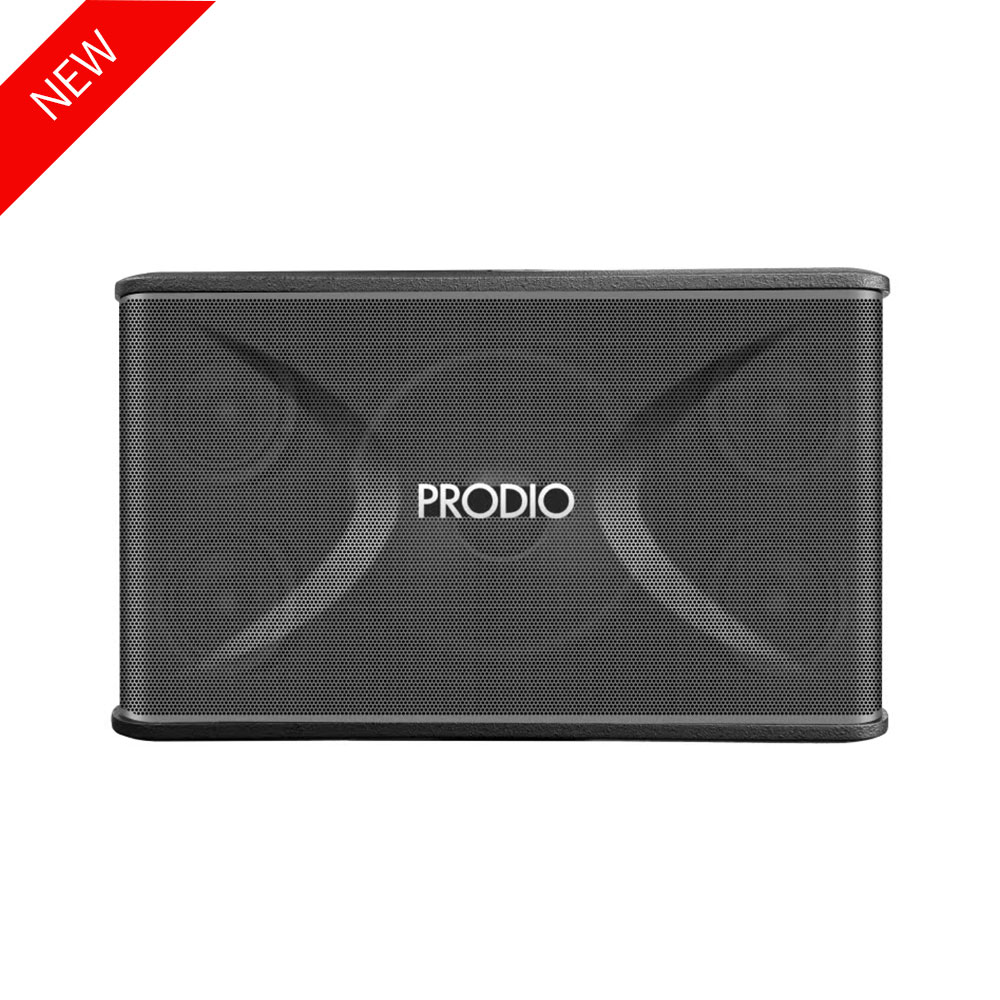

10" 2-way low-frequency reflex loudspeaker

KSP 490

Passive 2-way bass-reflex full-range karaoke speaker
10-inch woofer, dual 3-inch tweeters
Front-bore loudspeakers are designed for high power handling, low distortion, and minimal power compression
A power rating of 180 watts and a sensitivity of 90dB provide unmatched output and sound quality
Sleek and modern design, perfect for all kinds of interior designs

 Application: KTV, family entertainment, clubs, etc

Detail

10" two-way rear-phase loudspeaker

DSP1000 MKII

Versatile, full-range, two-way speaker system with ultra-low distortion 10-inch woofer and 1-inch compression driver, and a rotatable 90°x50° horn allows for vertical or horizontal installation under any environmental and architectural constraints

Application: KTV, family entertainment, nightclubs

Detail
