Karaoke Speaker
10-inch three-way loudspeaker
KSP-8100

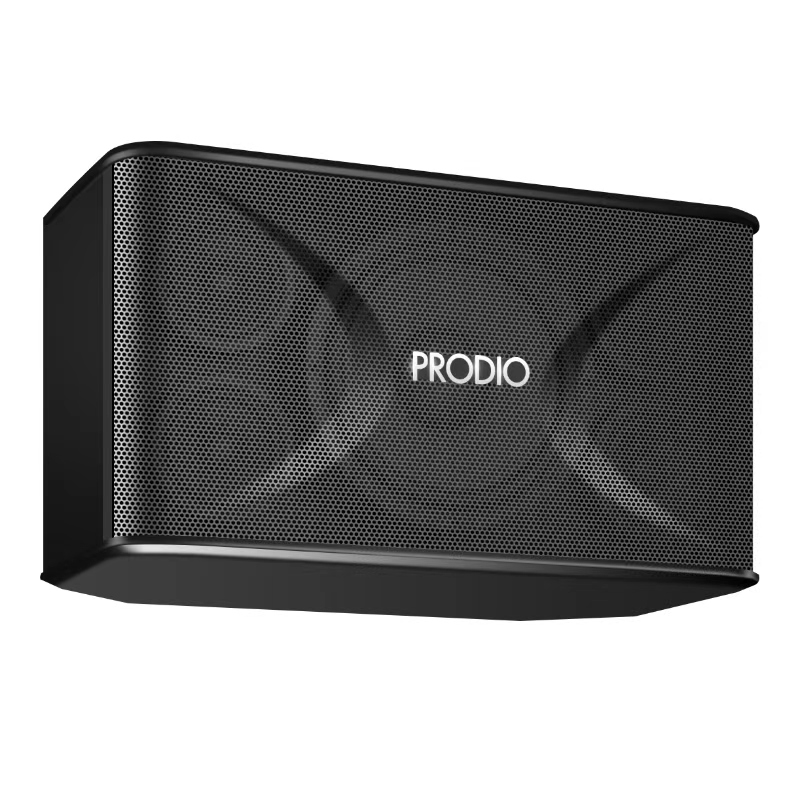

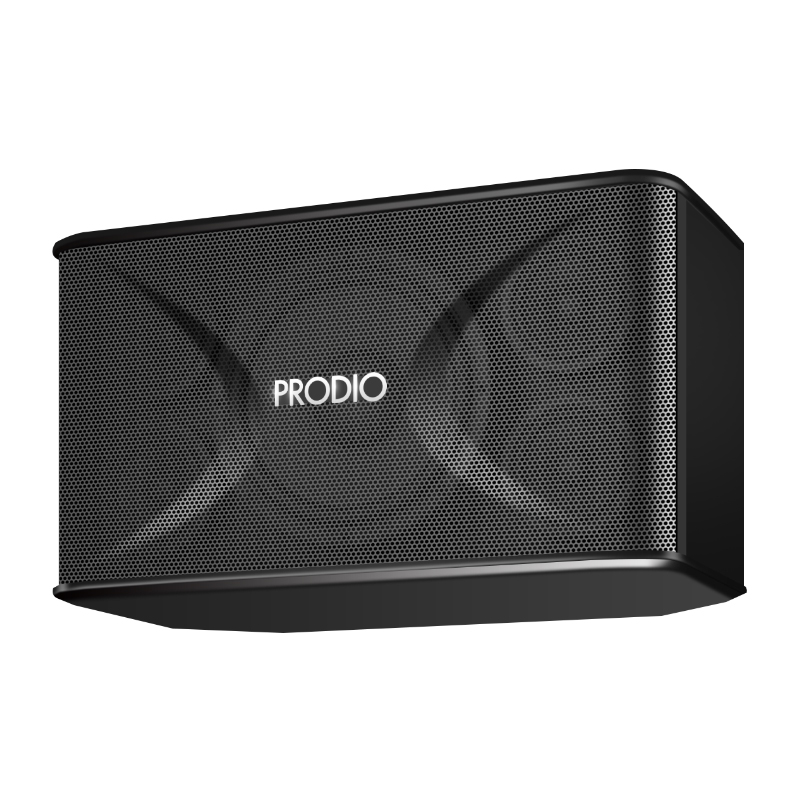

The KSP-8100 is a three-way loudspeaker specifically designed for the karaoke market. It features a 10-inch woofer, two 3-inch paper cone midrange drivers, and two 3-inch paper cone tweeters.
characteristic
• 10-inch woofer with 2-inch voice coil, providing high power handling capability
• The woofer adopts a linear suspension and ventilation yoke design, effectively reducing distortion
• Two 3-inch midrange drivers and two 3-inch tweeters to enhance vocal reproduction
• Built-in protection circuit, specifically designed to protect the tweeter without affecting performance
Rated Power 220W
Maximum Power 440W
Nominal Impedance 8 OHMS
Recommended Amplifier Rated Output Power 400W—600W@8 OHMS
Nominal Sensitivity: (1W@1m) 94dB
Maximum Sound Pressure Level 118dB@250W(121dB@500W)
Frequency Bandwidth (-10dB) 45Hz—18KHz
Nominal Directivity (-6dB) 130°H×90°V
Transducer Configuration Ferrite high-frequency driver 3" paper cone tweeter × 2"
Ferrite mid-frequency driver 3" paper cone tweeter ×2"
Ferrite low-frequency driver 10″×1"
Frequency Division Mode Passive three-way crossover
Connector Red and black terminal studs
Box Material 15mm (0.6") MDF
Color The default color is black, environmentally friendly, water-based paint spraying, and other colors can be customized upon request
Product Dimensions W520mm*D315mm*H292mm
Weight (Net Weight/Gross Weight Per Piece) 12.6kg
Reference Application Areas Suitable for fixed installations in KTV rooms, conference rooms, etc
